Overview

Basic Info.

Model NO.	NL-C36-1708014
Plating	Brass,Gold Plated
Certification	ISO9001, CE, RoHS
Gender	Female
Insulating Materials	PTFE
Contact Finish	Brass,Gold Plated
Materials	Brass
Standard	IEC 60169-36
Material	Brass,Gold Plated
Impedance	50 Ω
D/C	3 GHz
Frequency Range	DC-3 GHz
Vswr	≤ 1.3
Durability	500 Cycles
Temperature Range	-40ºC~+85ºC
Transport Package	Carton
Specification	MCX-KE-L7.5-F01
Trademark	nalei/ODM/OEM
Origin	China

Product Description

Product Parameters

Preferred Materials,Compliant with Standards
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance. 2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear. 3.Body:Brass,Gold plated. 4.Inner Contact:Tin Bronze,Gold plated. 5.Insulator:PTFE.

Precision Machining,Process Specification
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance. 2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear. 3.Body:Brass,Gold plated. 4.Inner Contact:Tin Bronze,Gold plated. 5.Insulator:PTFE.

Factory Inspection,Stable Performance
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance. 2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear. 3.Body:Brass,Gold plated. 4.Inner Contact:Tin Bronze,Gold plated. 5.Insulator:PTFE.

Withstand a Variety of Harsh Environment Verification

1.It can be Customized According to Customer Application Scenarios.
2.RoHS (Compliant).

3.Temperature Range (-40ºC~+85ºC).

4.Salt Mist (IEC 60068-2-11 (48H or Customized)).

5.Protection Class (IP65). 6.Durability (500 cycles).

7.Reference Standards (IEC 60169-36).

Industry-specific Attributes
Type	MCX Type RF Connector
Applicaton	RF, Microwave
Origin	Nanjing,China
Certification	ISO9001,ROHS,CE
Customization	Available
Trademark	nalei
Product Description

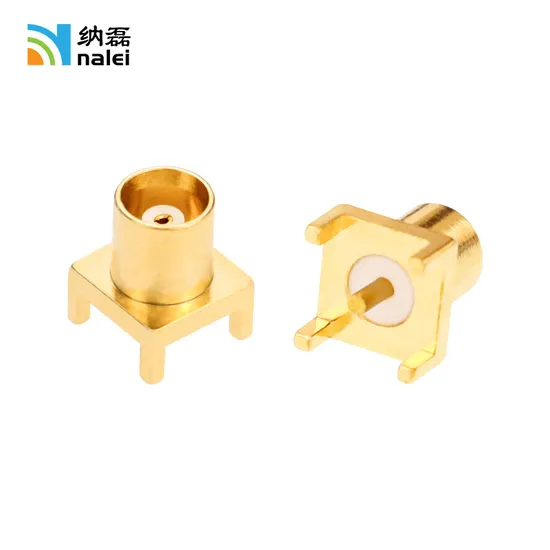

Product Name	MCX Female ith four-pin Socket Coaxial Connector
Model	MCX-KE-L7.5-F01
Material and Plating
Body	Brass,Gold plated
Inner Contact	Tin Bronze,Gold plated
Insulator	PTFE
Electrical Characteristics
Impedance	50 Ω
D/C	3 GHz
Frequency Range	DC-3 GHz
Insertion Loss	≤ 0.25dB
VSWR	≤ 1.3
Dielectric Withstanding Voltage	≥ 1000V
Insulator Resistance	≥ 5000MΩ
Center Contact Resistance	≤ 3.0MΩ
Outer Contact Resistance	≤ 2.5MΩ
Temperature Range	-40ºC~+85ºC
Durability	500 cycles
Environmental and Mechanical Specifications
RoHS	Compliant
Protection Class	IP65
Thermal Shock	IEC 60068-2-3
Vibration	IEC 60068-2-6
Salt Mist	IEC 60068-2-11(48H or Customized)
Reference Standards	IEC 60169-36
