Overview

Basic Info.

Industry Type	Automotive Wiring Harness
Bandaging Materials	According to The Customers′ Requirements
General Wiring Harness	According to The Customers′ Requirements
Signal	According to The Customers′ Requirements
Shape	According to The Customers′ Requirements
Interface Type	According to The Customers′ Requirements
Certification	RoHS, ISO9001, IATF16948, CE, etc.
Brand	Customized
Wire Gauge	40AWG-120 Square Millimetre
Multi-Wire	1-60 and More.
Color	Color and Length Can Be Customized
Temperature Class	-40ºC~80ºC
Connector	We Source Standard Brand Wire Connectors
Cable Preparation	Trimmings, Stripping, Tin Coating, Twisting
Injection Molding Materials	Crystalline Plastics; Amorphous Plastics; etc.
OEM/ODM	Accept
Sample	Free
MOQ	Small MOQ and Trial Order Are Welcome.
Delivery Time	7- 15days, on-Time Delivery
Transport Package	Based on Customer Needs
Specification	According to the customers′ requirements
Origin	China Guangdong/Hebei
Production Capacity	100, 000 Pieces/Month.

Product Description

Q1: Are you trading company or manufacturer/factory?
A: We are manufacturer.

Q2: Are these products quality assured?
A: All of our products are ROHS compliant, cables are IATF16949/CCC/CE/CEA certificated. We have strict QC, passed ISO9001 Quality control system, all products are 100% tested before delivery.

Q3: How long is your delivery time?
A: Generally it will take 7 days for sample

Product Parameters

All kinds of cable assemblies including: --Electrical cable assembly --Coaxial cable assembly --Multi-core cable assembly --Connector to board cable assembly --Automobile communication cable assembly --Power transmission cable assembly Wire Marking Service: Labels with Series number, Part number, Date code, etc. Certification: ROHS, IATF16949, CE, ISO9001 all products are 100% tested

Company Profile

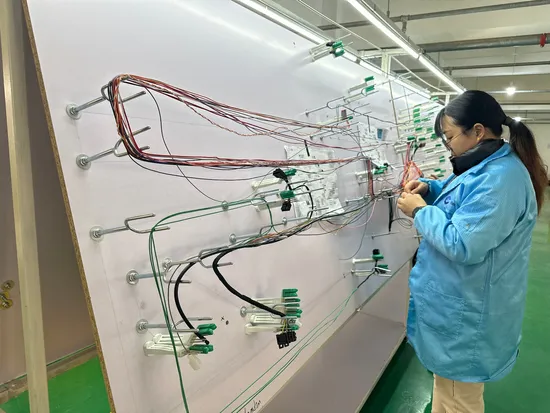

OurPCB was ounded in 2007, OurPCB has grown into a global leader in electronic manufacturing services (EMS) over nearly two decades. Today, we operate three manufacturing facilities and four sales offices worldwide, serving over 3,000 customers with a comprehensive range of solutions, including PCB fabrication, PCB assembly, wire harness production, housing assembly, and final testing.Our Manufacturing Facilities:1.Shijiazhuang PCBA Factory • Equipped with five Siemens SMT production lines • 10,000 square meters of factory space • Over 300 skilled technicians • Specializing in high-quality PCB assembly services2.Shenzhen PCBA Factory • Equipped with eight Yamaha SMT production lines • 5,000 square meters of production space • Over 100 employees • Ideal for mass production PCB assembly3.Shijiazhuang Wire Harness Factory (CLOOM) • 5,000 square meters of manufacturing space • Over 100 workers • Provides comprehensive wire harness solutions, including automotive, robotics, industrial control, medical equipment, and electronic wire harnesses At OurPCB, we maintain rigorous management processes and have obtained ISO 13485, ISO 9001, and IATF 16949 certifications, ensuring high-quality standards and compliance across all our services.

Product Description

Wire Type	UL, CSA, VDE, SAA, CB, etc and pure copper. It can be customized according to your needs.
Wire Gauge	40AWG-120 square millimetre
Wire Cores	1-50 cores are available
Conductor	Bare Copper, Tinned Copper, Sliver Plated, Gold Plated Wire
Rate Temperature	80ºC, 105ºC, 125ºC, 180ºC, 220ºC, 300ºC (176°F-572°F)
Connector Type	TE, Molex, JST, Delphi, JAE, Tyco or according to your requirements.
Protection Pipe	PVC tube, Corrugated pipe, Shrink Tube, Braid Tube
Protection	Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid and alkali-resistant cable are available.
Plug Molds	Can be customized according to customer requirements
Test	Professional break over and pulling force test before goods sent out
Samples	Samples confirmed first before trial or mass production
Lead Time	Normally 3-4 weeks
Service	OEM and ODM. We accept customization according to your requirement
Application	Automobile, Medical, Electronics, Equipment LED Lamp Battery Control Auto Mobile Board to Board Wire
Pls feel free to contact us or send your sample or drawing to us. We will reply you ASAP.

Customization Steps

Certifications

FAQ

10-20 workdays for mass production, it is according to quantity.Q4: Do you provide samples? Is it free or extra? A: Yes. The free samples are available. You just need to afford the freight cost.Q5: If I want to customize products, how will it work? A: Pls offer us drawings or pictures. Equipped with professional equipment, technicians & skilled employees, OEM service are welcome.Q6: What payment terms can you accept? A: Normally 30% deposit to start order and balance 70% payment before shipment.
