Overview

Basic Info.

Model NO.	YXD75S-DK34L-DWL
Installation	Wall-Mounted
Type	Network Version AD Player
Touch Screen Type	Capacitive
Screen Technology	LCD
Interface Type	USB
Remote Control	With Remote Control
OS	Android
Customized	Customized
Contrast Ratio	4000:1
Active Area	1650*928mm
Brightness	2500 CD/M2.
Viewing Angle	89
Resolution	3840*2160
Panel Size	75inch
Cooling System	Fan Cooling Systm
Certificate	CE/CCC/FCC/RoHS/ISO9001
Feature	IP65 Is Waterproof and Dustproof
Including	Remote Manual. Power Adapter
Warranty	1-3 Years
Color	Black / Grey/ Customization
Packaging Details	Wooden Package
WiFi	Yes
System	Android
Transport Package	Customized
Specification	75Inch
Trademark	Asianda
Origin	Shenzhen
HS Code	8528591090
Production Capacity	5000 Piece/Pieces Per Quarter

Packaging & Delivery

Package Size210.00cm * 40.00cm * 790.00cm Package Gross Weight300.000kg

Product Description

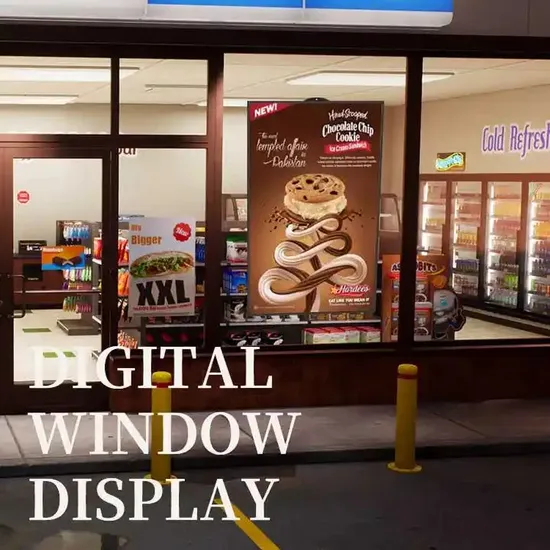

75 Inch Android Smart LCD Screen Advertising Players Outdoor Digital Signage for Wall Mount

Product performance:
*Machine protection grade:IP65 Product Description *Full set of certificates: Appearance patent, CE certificate,ROHS certificate, FCC certificate, IP65 glass certificate, etc *High efficiency multilayer filtration system *Waterproof, dustproof and lightning proof *Automatic temperature control *Remote Class(IK10 Certified) *Support Customization *Support cable, Wifi, 4G network. *Supports a variety of general audio / Video, and office documents; *Different users can set different permissions; *Monitoring abnormal alarm: Abnormal parameters are sent to the specified mailbox *Adopt distributed management, support remote or local control, support wired, WIFI,4G network *Photosensitive system:3000nits highbrightness can be adjusted automatically according to the surrounding environment; *Support android phone or tablet terminal to play a list of programs, remote monitoring, timing switch function

Specification parameter
Model No.	YXD43S/YXD49S	YXD55S	YXD65S	YXD75S	YXD86S
Screen Size	43inch/49inch	55inch	65inch	75inch	86inch
Product size(mm)	794*1315*130	861*1950*130	1010*2200*1510	1150*2400*155	1380*2355*250
Weight(Thick)	197KG	220KG	250KG	300KG	350KG
Tips:We have thin and thick sizes to choose from, their prices are the same and We can meet all your custom requirements, if you want more detailed product parameters, please contact us for any question,
Product structure
BUILT-IN:	EMMC 8G expandable 64G		Screen Type	TFT
OTHERBOARD	RK3288 quad-core, 2.0		Ghz Ram	2 GB(4GB)
operating system	Android6.0/7.1/7.9		Response Time	6S
Angle	Horizontal / Vertical: 178		Point Distance	0.63 * 0.63
contrast	3000:1		Resolution	1920 * 1080
Power supply	AC110~240V 60HZ		Display Area	1209 * 680
SCREEN RATIO	16:9		Power	380W
Installation mode	Floor Stand		Vertical	178/178
Viewing Angle	89/89/89/89		Working Environment	Working Temperature: -20°C to + 55 °C working humidity: 5% to 90%

3D digital filter noise reduction, line-by-line scanning, the screen is true and delicate; Smart screen protection function, prevent Burns; Various high definition signal interface, strong compatibility; Intelligent backlight brightness control, improve the visual effect of image, save energy and save electricity;Screen brightness,Intelligent split screen, built-in fan heating system, intelligent control of internal temperature and humidity of the chassisThe intelligent temperature control cooling / heating system ensures the machine to work stably in the best environment.Each playing area can be arranged and layered freely, and can be played on horizontal and vertical screens; Screen Area Free Segmentation, composable picture, audio, video, web page, clock, date, caption, mixed material editing; Support Program and broadcast table preview, real-time monitoring playback screen, multi-stage timing switch settings, automatic reset

Through-air cooling system	Low temperature self-starting heating module
	The temperature of self-checking probe can control the rotation speed of the fan to save energy and prolong the life of the fan
	Intelligent temperature sensing system, high temperature automatically turn off the display
Waterproof design	The air inlet and outlet are designed with special dust-proof filter (medium and high efficiency dust-proof filter) to filter the fine dust in the air and prevent mosquitoes and insects from entering the machine
Timer	Can Be set by day, week, month custom switch machine
Leakage Protector	When the leakage current is greater than 30MA, the circuit should be disconnected to protect the human body
Lightning arrester	Self-check outdoor lightning strike 40kA surge current, play a 3-level lightning protection effect, to protect the safety of equipment
Switching power supply	Using industrial-grade power supply, 365 days stable throughout the year, continuous voltage output
Waterproof Horn	Waterproof high quality 10W speaker, sound quality lifelike, Sound Sense Stereo
Manual, remote control, warranty card, certificate of conformity, Power Cord
Product architecture	1.5 mm galvanized sheet, sprayed Aksu outdoor powder, outdoor anti-corrosion for more than 7 years
Dust proof design	The shell structure design waterproof trough and in and out the wind hole waterproof labyrinth, meets the IP55 protection grade
Anti-theft design	The Base / Hanger is designed with an internal lock to prevent the machine from being moved by removing screws from the outside, which is really safe against theft

Application Scenario & Customer Feedback:

CEO Recommend & Our Exhibition:

Android system (Default)	CPU	Quad-core Cortex-A17 up to 1.8GHz
	GPU	Mali-T760 MP4 @600MHz
	RAM	2GB DDR3
	ROM	16GB NAND Flash
	Wi-Fi	802.11 b/g/n
	Operating system	Android 6.0/7.1/ 9.0
	LAN	10/100M Ethernet RJ45
	USB	USB 2.0 x 2
	RJ45	Ethernet(LAN) x 1
	SD	SD(TF) x 1
	Audio	Audio Socket (3.5mm)
	Media Formats	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
	Software supported	APP Installer, File Manager, Video player, picture player, Browser, etc.
Windows system(Option)	CPU	Intel Core i3/ i5/ i7
	Graphic	Integrated HD graphic card
	RAM	4/ 8GB DDR3
	ROM	128GB SSD
	Operation System	Windows 10 (Un-registered version, register license extra cost)
	Wi-Fi	802.11 b/g/n, USB dongle, external USB WIFI dongle
	LAN	10/100/1000M Realtek Ethernet RJ45
	USB	USB 2.0 x 4
	RJ45	Ethernet(LAN) x 1
	VGA	VGA Output
	Audio	Audio Socket (3.5mm) Output
	Media Formats	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG), etc.
	Software supported	APP Installer, File Manager, Video player, picture player, Browser, etc.

Product Packaging:

Company Information:

Company Profile

FAQ

1. who are we? We are based in Guangdong, China, start from 2010,sell to Domestic Market(5%), North America(15%),Western Europe(30%),Northern Europe(50%), There are total about 11-50 people in our office. Engineering team of 10 people, three production lines, a dust-free workshop, monitoring room, aging room, 2000 square meters warehouse We have 10 items of product inspection before shipment to ensure that the goods you receive are perfect2. how can we guarantee quality? The warranty period of the product is 1-3 years Always a pre-production sample before mass production; Always final Inspection before shipment;3. what can you buy from us? LCD Video Wall,Digital Window Display,Touch kiosk,Outdoor Digital Totem,Commercial Display4. why should you buy from us not from other suppliers? 1.15-years manufacturing LCD equipment 2. excellent facilities and perfect service 3. We are a high-tech firm compliant with ISO9001:2008 standard 4. All product meet CE,FCC,UL and UL, PSE, TUV certificate. 5. Growing withthe partner
